| Technical Characteristics ( ILs ) |
| MRC |
Requirement |
Reply |
| AAFZ |
BODY MATERIAL |
STEEL AND WOOD |
| AAXZ |
CYLINDER QUANTITY |
6 |
| AEXR |
BATTERY QUANTITY |
2 |
| AGDH |
WHEEL QUANTITY |
6 |
| AGDJ |
DRIVE WHEEL QUANTITY |
6 |
| AGEA |

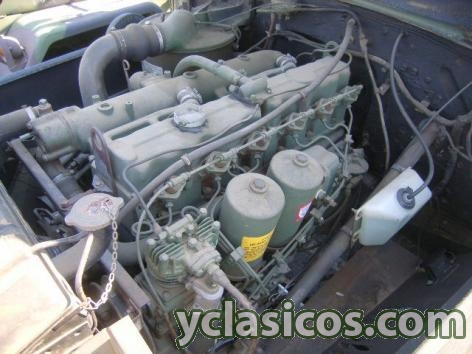

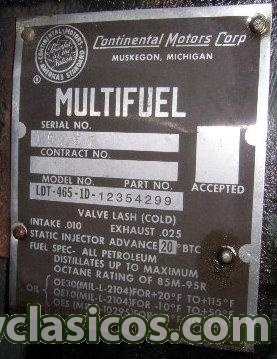

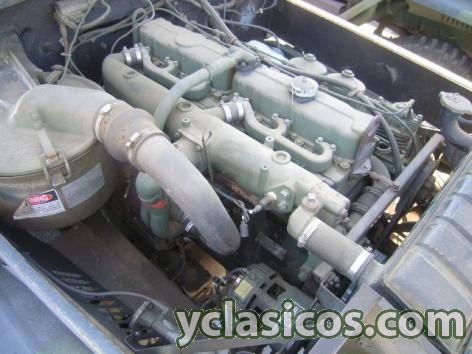

III ENGINE/MOTOR MANUFACTURER CODE AND MODEL NUMBER |
19207 LD465-1 |
| AKDJ |
PRIME MOVER TYPE |
DIESEL ENGINE |
| ALKK |
ENGINE BRAKE HORSEPOWER |
140.0 |
| ALKL |
ENGINE HORSEPOWER RATING SPEED IN RPM |
2600.0 |
| ANLJ |
BATTERY VOLTAGE RATING IN VOLTS |
12.0 |
| ATWQ |
REVERSE SPEED QUANTITY |
1 |
| AXJD |
TRANSMISSION TYPE |
MANUAL |
| AXJH |
FORWARD SPEED QUANTITY |
5 |
| AYTC |
HINGE LOCATION |
BOTTOM |
| BSWH |
STAKE TYPE |
LATTICE PANEL |
| BTLY |
SEATING CAPACITY |
3 |
| CBBL |
FEATURES PROVIDED |
TAILGATE AND TARPAULIN AND TOP BOWS AND TOWING PINTLE HOOK AND TRAILER BRAKE CONNECTION AND UNDERWATER FORDING SYSTEM |
| CHZG |
TRAILER BRAKE CONNECTION TYPE |
AIR |
| CNTJ |
RATED LOAD CAPACITY |
2.50 TONS |
| CNTK |
DRIVE AXLE LOCATION |
FRONT AND REAR |
| CNTL |
AXLE DRIVE TYPE |
DOUBLE REDUCTION |
| CNTN |
POWER DIVIDER UNIT |
NOT INCLUDED |
| CNTP |
FRONT AXLE ENGAGING MECHANISM TYPE |
AUTOMATIC |
| CNTQ |
REAR WHEEL MOUNTING TYPE |
DUAL |
| CNTR |
NOMINAL WHEELBASE |
154.00 INCHES |
| CNTS |
FRONT WHEEL TREAD NOMINAL WIDTH |
67.75 INCHES |
| CNTT |
REAR WHEEL TREAD NOMINAL WIDTH |
70.00 INCHES |
| CNTW |
MULTIFUEL DESIGN FEATURE |
INCLUDED |
| CNTY |
TRANSMISSION ADJUNCT TYPE |
TRANSFER |
| CNTZ |
TRANSMISSION ADJUNCT SPEED QUANTITY |
2 |
| CNYS |
CAB TYPE |
CONVENTIONAL |
| CNYT |
CAB ROOF TYPE |
OPEN |
| CNYW |
BRAKE ACTUATION METHOD |
AIR AND HYDRAULIC |
| CNZD |
TAILGATE OPERATION METHOD |
MANUAL |
| CNZP |
CARGO AREA NOMINAL LENGTH |
147.00 INCHES |
| CNZQ |
CARGO AREA NOMINAL WIDTH |
88.00 INCHES |
| CNZR |
CARGO AREA NOMINAL HEIGHT |
60.00 INCHES |
| CPJW |
III BODY MANUFACTURER CODE AND MODEL NUMBER |
19207 8332225 |
| CPJX |
III CHASSIS MANUFACTURER CODE AND MODEL NUMBER |
19207 M45A2 |
| CPKC |
III VEHICLE CURB WEIGHT |
13400.0 POUNDS |
| CPKD |
VEHICLE MAXIMUM GROSS WEIGHT |
23800.00 POUNDS |
| CPLG |
CAB DOOR QUANTITY |
2 |
| SR-1 |
MANUFACTURERS CODE |
81349 |
| SR-1 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE |
MILT46780 |
| SR-5 |
MANUFACTURERS CODE |
19207 |
| SR-5 |
DESIGN CONTROL REFERENCE |
8736581 |
| ZZZT |
NONDEFINITIVE SPEC/STD DATA |
M35A2 MODEL AND TRUCK,CARGO TYPE |
